Connecting a Raspberry Pico to HDMI

Some experiments with getting HDMI output on a Pico microcontroller.

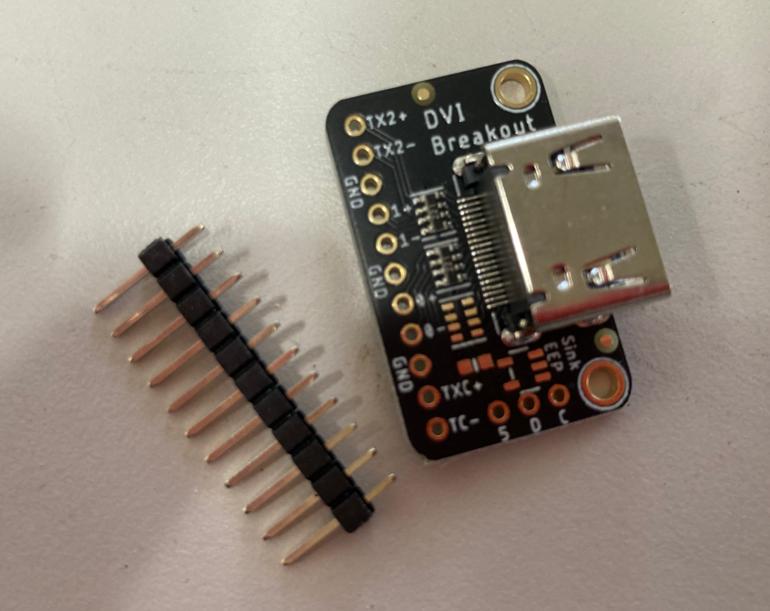

I picked up a Adafruit 4984 DVI breakout board with some header pins.

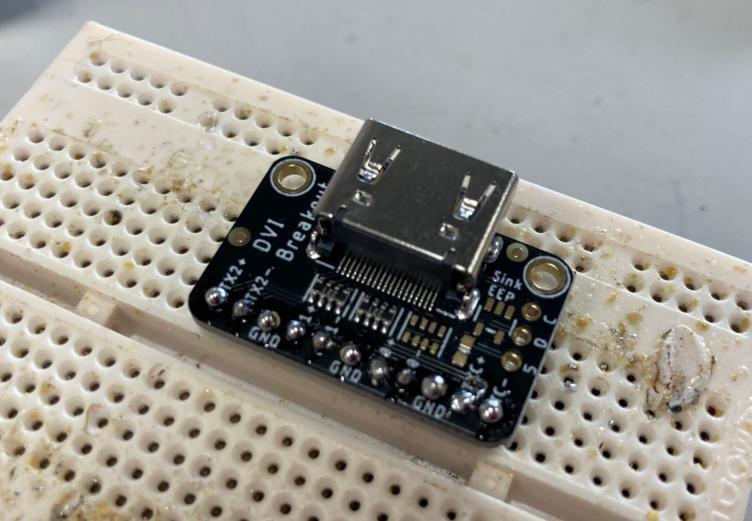

I soldered the pins using an old breadboard.

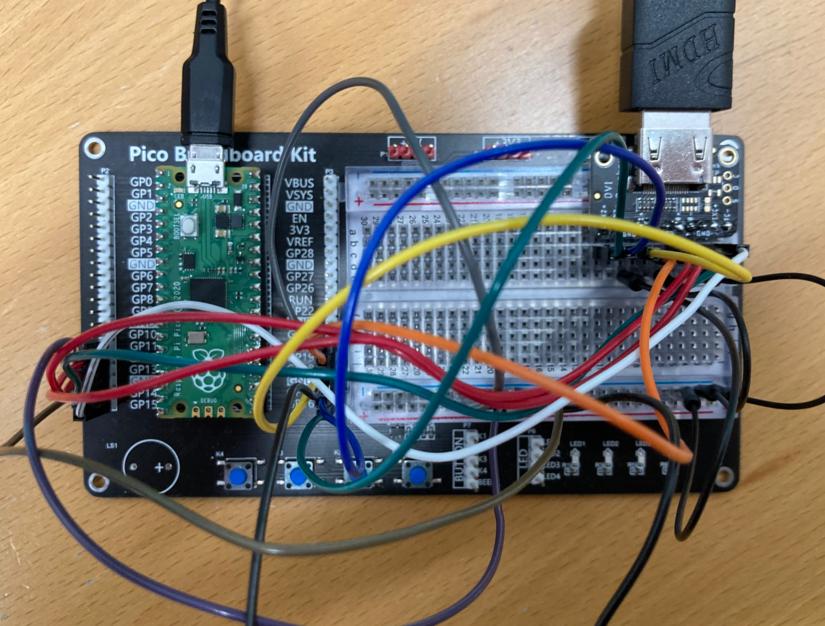

Wired up the breakout board.

Downloaded the sample code from the Adafruit webiste and built the C apps using cmake.

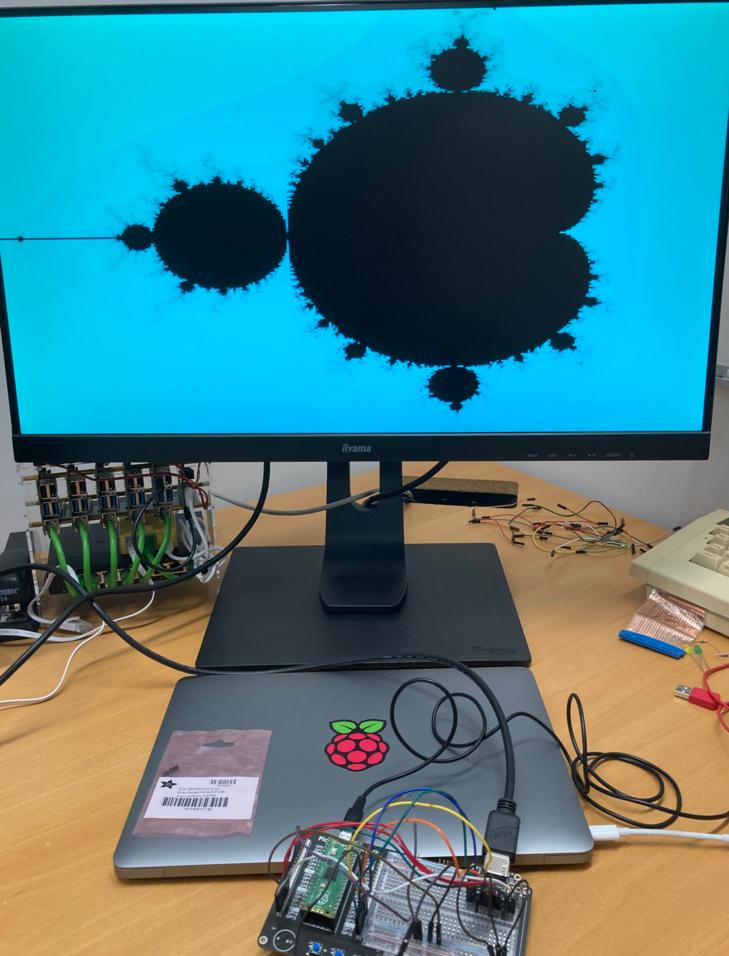

Here’s the mandlebrot example..

I was suprised this worked first time! No wiring issues or code issues. In my experience, working with the Pico and third party libraries, I always end up spending time troubleshooting, so it’s great when it just works.'

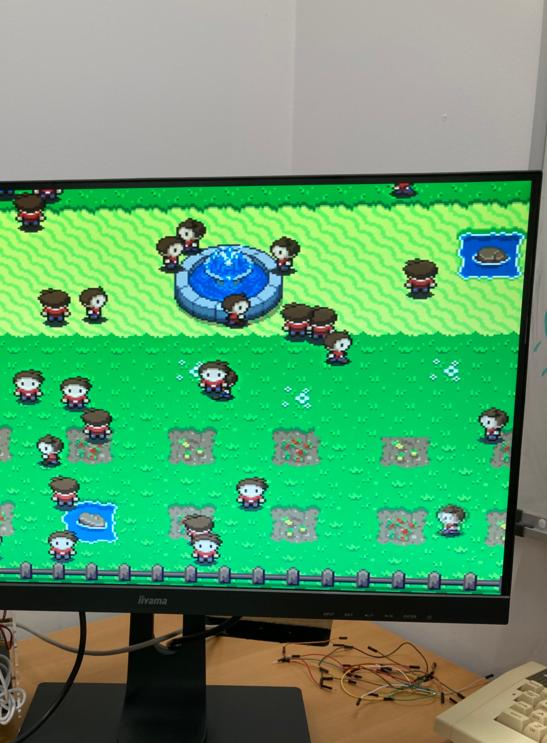

There are a few other examples you can try out including some animations.

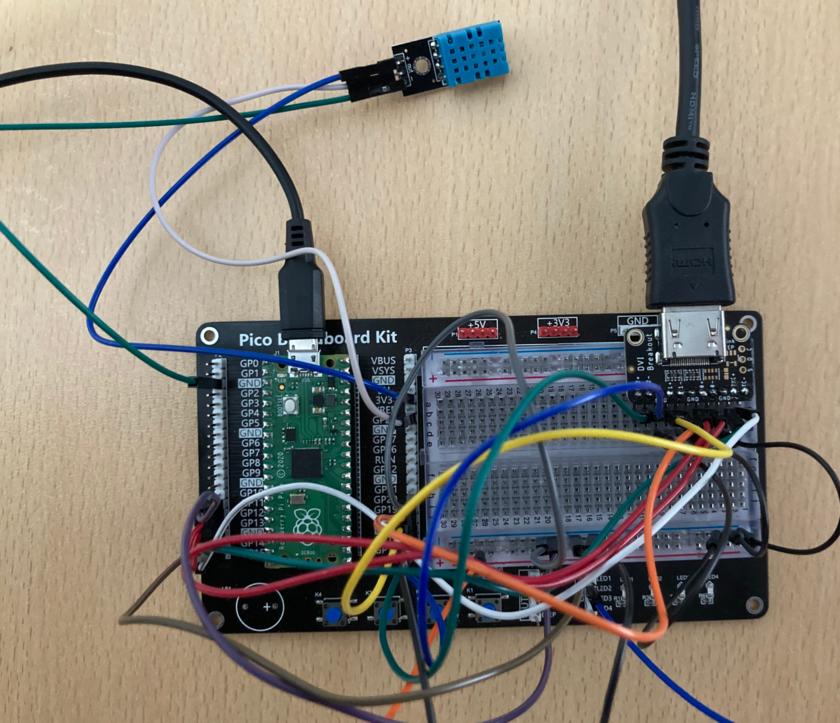

The last experiment was to hook up a DHT11 temperate and humidity sensor, and push this data to the monitor. The sample app worked, but both the temperate and humidity values were posting 255.

I found a useful post discussing the issues at https://github.com/raspberrypi/pico-examples/issues/11

I modifed the sample code and rebuilt a few times, and the sensor sprung to life..

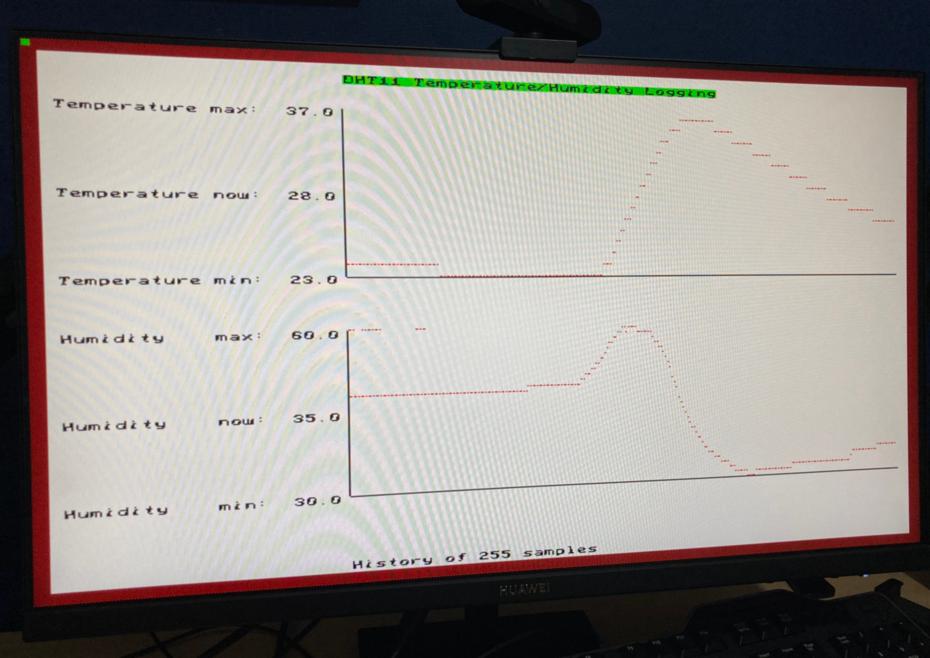

and the resulting output..
